KRONOS Optikos3G NEW
KRONOS Optikos3G
FROM USD$5,395
KRONOS Optikos3G

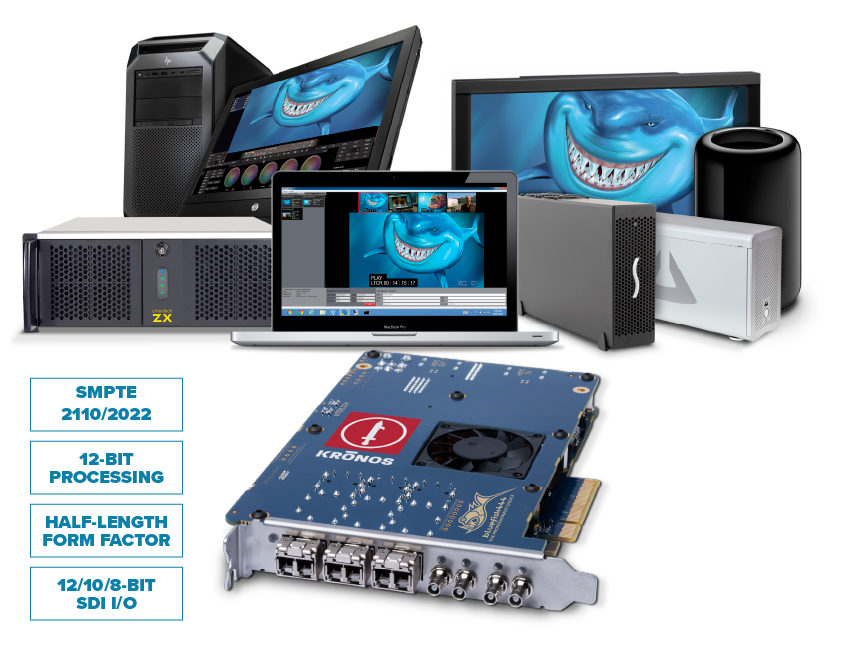

Built with multi-channel HD 60p, High Dynamic Range (HDR), High Frame Rate SMPTE 2110/2022 and 3G SDI support for Video Over IP workflows, broadcast, production and post-production, the new KRONOS Optikos3G with its interchangeable SFP+ interfaces is ready for anything that you can throw at it.
Major features at a glance
| KRONOS Optikos3G | |
|---|---|
| Interchangable SFP+ Interfaces | 3 |
| Maximum Video Channels via SFP+ Modules | 6 |
| 3G/1.5G/SD-SDI I/O (HD-BNC)* | YES* |
| 3G/1.5G/SD-SDI I/O (Singlemode Fibre)* | YES* |
| HD/SD HDMI 1.4a Type D (Micro-HDMI)* | YES* |
| Bi-Directional SDI (HDBNC) | 2 |
| 1.5G HD/SD-SDI | 2 |
| 3G-SDI (Level A+B) | 2 |
| Dual Link 1.5G SDI (4:2:2:4/4:4:4:4) | 2 |
| Dual Link 3G SDI (Level A+B) | YES |
| HDR | YES |
| LTC I/O | YES |
| Optional AUX I/O via STEM port | YES |
| Reference In / SPG Out | YES |
| Interlocking I/O | YES |
| Embedded audio | YES |
| Low-latency hardware keyers | 4 |
| Bypass relays | 1 |
| Colour space converter | YES |
| Customisable pixel formats and rasters | YES |
| Multi-card support | YES |
| Thunderbolt compatible | YES |
| Full-duplex DMA | YES |
| VBI, HANC & VANC | YES |
| NVIDIA GPUDirect | YES |
*Modules supported but not included, customise SFP+ using the Bluefish444 Optikos3G configurator
Optikos3G provides unsurpassed image quality with a 12-bit processing pipeline for all 12/10/8-bit video modes. The hardware design and cross-platform SDK have evolved from 19+ years of continuous development, making it extraordinarily reliable.
With Interchangable SFP+ Interfaces that can be populated and exchanged with SMPTE 2110/2022 IP, SDI Coaxial, SDI Fiber, or HDMI modules, an MR2 routing resource, alongside a customisable full-duplex asynchronous DMA engine, Optikos3G delivers unrivalled developer flexibility.
Optikos3G has, by design, the world's lowest latency, providing access to captured video frames with the shortest possible delay. A FIFO mode to protect against dropped frames, support for optional SMPTE 2022-7 hittless redundancy, an SDI bypass relay and a watchdog timer allows developers to plan for the unexpected and ensure that the show does go on.
Flexible, cross-platform SDK
The Bluefish444 Windows, and Linux share a common API allowing developers to port from one platform to another with greater ease and efficiency. Other common development interfaces are available including DirectShow, Video 4 Linux 2 and Medialooks MPlatform.
Optikos3G is supported by the same free SDK and free integration support as Epoch, so for existing Bluefish444 integrations, it’s quick and easy to get working with KRONOS IP and SDI I/O.
